One system for all homes
Flexible monolithic form system

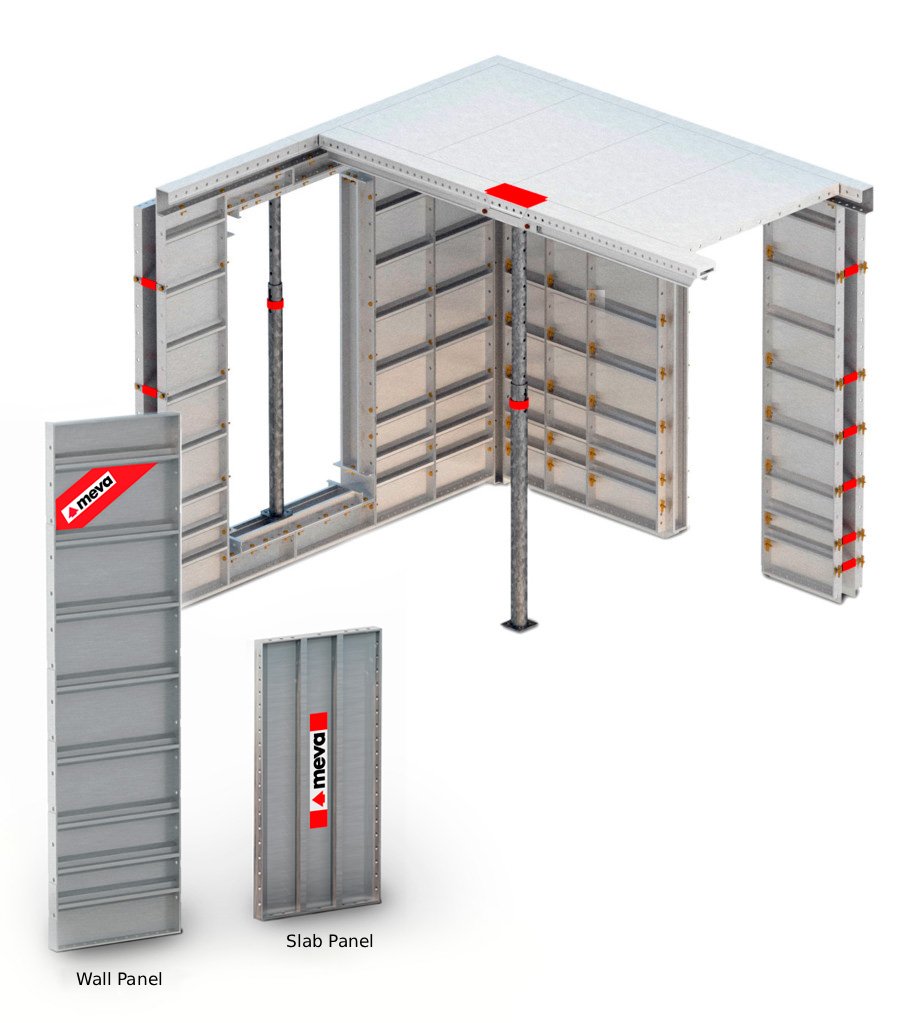

The MEVA MonoFix hand-set system is perfect for all residential construction projects, thanks to its outstanding features: easy and quick assembly, cost-effective implementation on site and flexibility to adapt to any building layout.
Many residential projects require mainly walls and slabs, but even when projects require columns and beams rather than walls, MonoFix can easily produce all sizes and connections needed, including complicated offsets and drop-panels.
It also comes with integrated stair forms, connected to the side wall panels and supported by MEVA props. They guarantee the correct geometry of the finished stairs and can be poured together with the walls and slabs above or in a second-stage pour. Customised production of the stair forms allows MonoFix to meet all architectural requirements.
If you need a versatile and flexible system for modern construction, MonoFix is the one to go for.
Got a specific enquiry about MonoFix?
Why not call our team on +632 917 7370
The homebuilder’s friend
Flexible as standard
- Panel heights of 120, 245 and 300cm
One floor’s work completed in one cycle
- Horizontal/vertical structure joints
- Integrated stairs and stair flights
- Openings for doors and windows
Light handling and assembly by hand
- Weight of panels: 22kg/m2
Fast and efficient concrete pours
- Load capacity: 60kN/m2
Durable and lightweight system
- Frames made from aluminum profiles (100% recyclable)
- Components impervious to moisture, no fungal decay and long lifespan
Easy to clean with high-pressure water
- Aluminium extrusion: T6061 – T6 with nominal thickness of 4mm
Quick and simple assembly
- Simple wedge-and-pin system to connect panels
MonoFix is ideal for all residential concrete structures including:
- Window hoods and parapets
- Curved and decorative features
Combined with rail to ensure the correct formwork alignment.
Enables the precise positioning of wall panels. Designed to prevent formwork rotation.
Aligning panels to create the perfect 90° angle in all corners.
For more detailed technical information please refer to the download tab which contains PDF information about this product.
Permissible fresh concrete pressure of 60kN/m².
300cm and 245cm.
60cm, 50cm, 45cm, 40cm and 30cm.
Low panel weight of 22kg/m².
Yes. Hand-set Formwork.
Panels: Pin and wedge system.
Inner Corner, Outer Corner, Wall End Panel, Slab connector, End Beam, Middle Beam, Rocker, Beam Slab Connector, Prop Head.
Symmetrical panels. Can be used horizontally and vertically.
Integrated full surface aluminium facing.
Custom-designed options upon request, to cast walls and slabs monolithically.
The MEVA MonoFix system can be used to form all concrete structures: Walls, Floors, Slabs, Balconies, Window hoods and parapets, Curved and decorative features, Columns, Beams, Stairs.
|Single floor cycle||
All of a floor’s work completed in 1 cycle including:
Kicker panels and screws
Embedded in the slab supporting the next level wall formwork. All anchor parts are recoverable.
Props remain in place after the slab has been dismantled, no repositioning or disturbance.
Tie sleeves (shown) and other accessories provided by MEVA are recoverable.
