Slab Formwork

MevaDec

One system – three slab-forming methods

Flexible and simple to use

One system: three methods

Fast and economical

Less labour and saves on materials

Lightweight and safe

Easy to handle, less worker fatigue

Lighter and more ergonomic.

The requirements for slab formwork vary, depending on your project’s floor plan, room dimensions, ceiling height, slab thickness and underside of slab. MevaDec is the solution: a slab formwork system made up of aluminium sections and an integrated plastic forming facing.

MevaDec is designed to enable various slab formwork methods to be carried out using one single system. This means identical parts can be used for different applications, from the drop-head-beam-panel and primary-and-secondary-beam methods to the panel method. No matter which forming method is best for your construction project, the same components are always used. The system also allows the different methods to be combined, significantly reducing the number of filler areas.

MevaDec can be flexibly adapted to suit any building layout and any slab thickness. Minimised filler areas allow a quick and easy set up, while predefined prop spacing ensures safety and optimised material stock on site.

It’s lightweight, easy to clean and ergonomically designed for easy handling.

Got a specific enquiry about MevaDec?
Why not call our team on +57 301 2276925

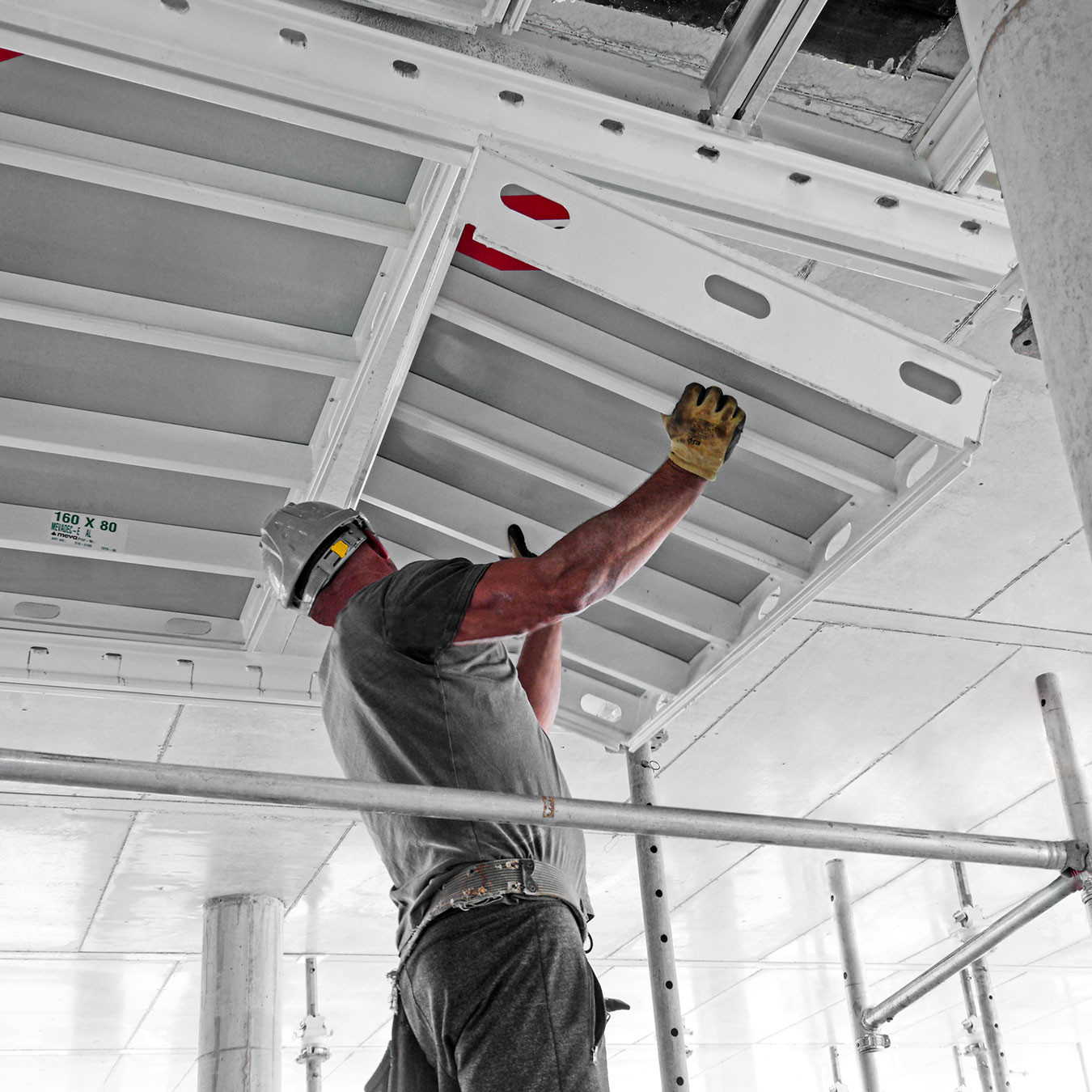

Man holding formwork panel from the inside

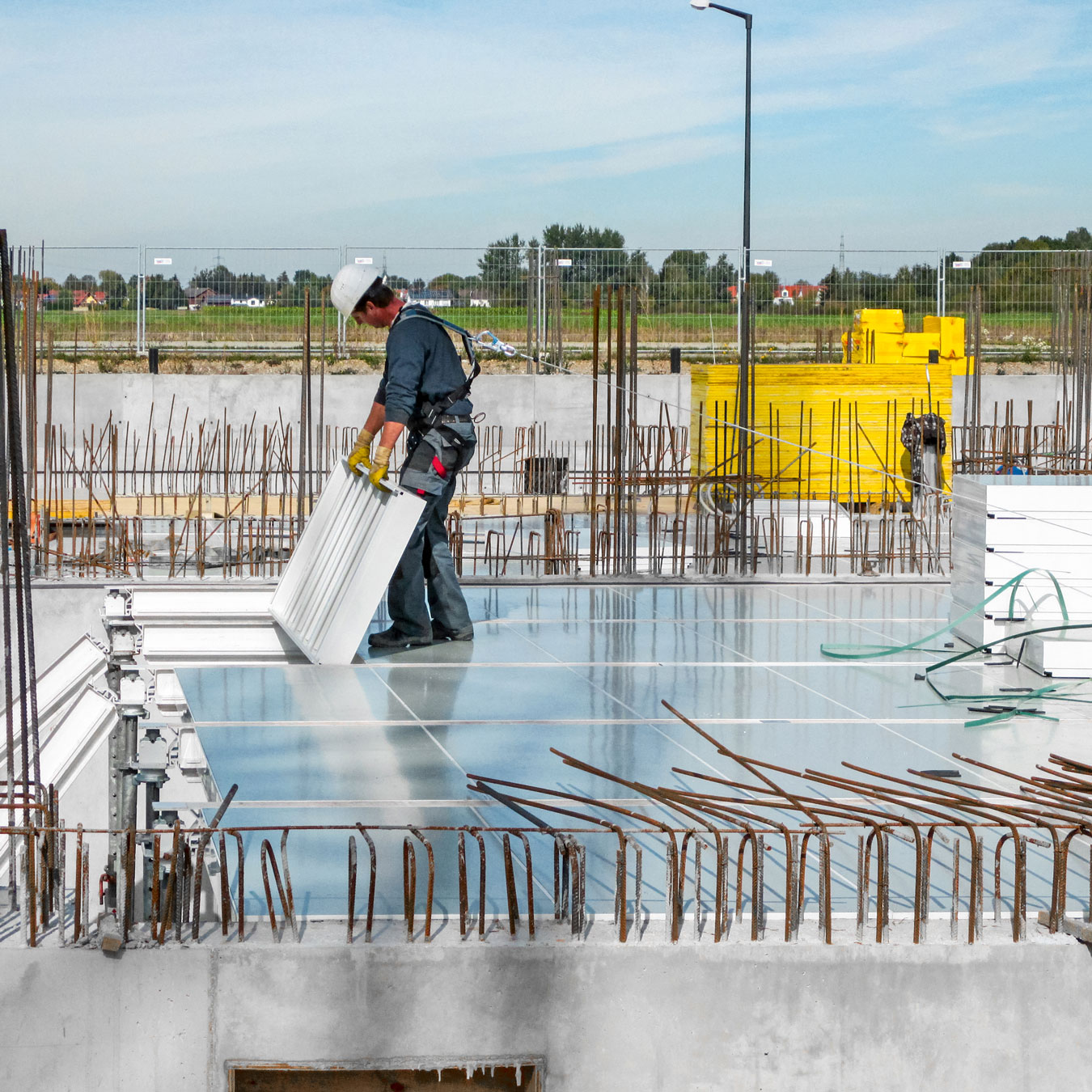

Man laying panels in slab formwork construction

Smooth concrete having been constructed with slab formwork

Lightweight and safe

Weight-optimised system for ergonomic and efficient work
System defined prop spacing aids safety

One system – three slab-forming methods

Drop-head-beam-panel method (FTE)
Primary- and-secondary-beam method (HN)
Panel method (E)

Closed aluminium section

Ergonomic grip profile
High-quality cured powder-coated finish for easy cleaning and reduced concrete adhesion

Sophisticated MEVA product design

High-quality alkus all-plastic facing with seven-year warranty
Durable and easy to repair
Compatible with previous generation of MevaDec
Robust, lightweight panels with grip openings to simplify handling

Robust yet flexible

MevaDec is ideal for slab formwork applications in all areas.

For more detailed technical information please refer to the download tab which contains PDF information about this product.

Technical Information
Materials	Aluminium.
Widths	40cm, 60cm, 80cm and 160cm.
Lengths	Primary Beam: 270cm, 210cm, 160cm and 80cm. Secondary Beam: 160cm and 80cm. Compensation Beam: 210cm, 160cm, 80cm, 60cm and 40cm.
Largest panel	160 x 160cm.
Weight	Standard panel 160/80cm weighs only 16kg/m².
Profile	Closed profile for a high degree of stability and durability.
Drophead stripping	Yes.
Protective coating	Powder coating for high ease of cleaning and reduced concrete adhesion.
Assembly Method	3 methods in one system: Drop-head-beam-panel method (FTE), Primary- and-secondary-beam method (HN), Panel method (E).
Connections	MevaDec panel connector.
Facings	High-quality alkus all-plastic panel AL 10 – 7-year long-term warranty (FTE, E method) and optionally 3S, alkus or other alternatives (HN method).
Shoring	MEP and MT 60 shoring towers, EuMax props.
Compatibility	Trouble-free connections to conventionally formed areas with MevaFlex.

Safety
SpanSet	Meva SpanSet, guard-railing posts and MEVA safety mesh, MAB working platform.

Drop-head-beam-panel method (FTE)
The FTE method uses only three components: panels, primary beams and props with drop heads. For almost all slab requirements.

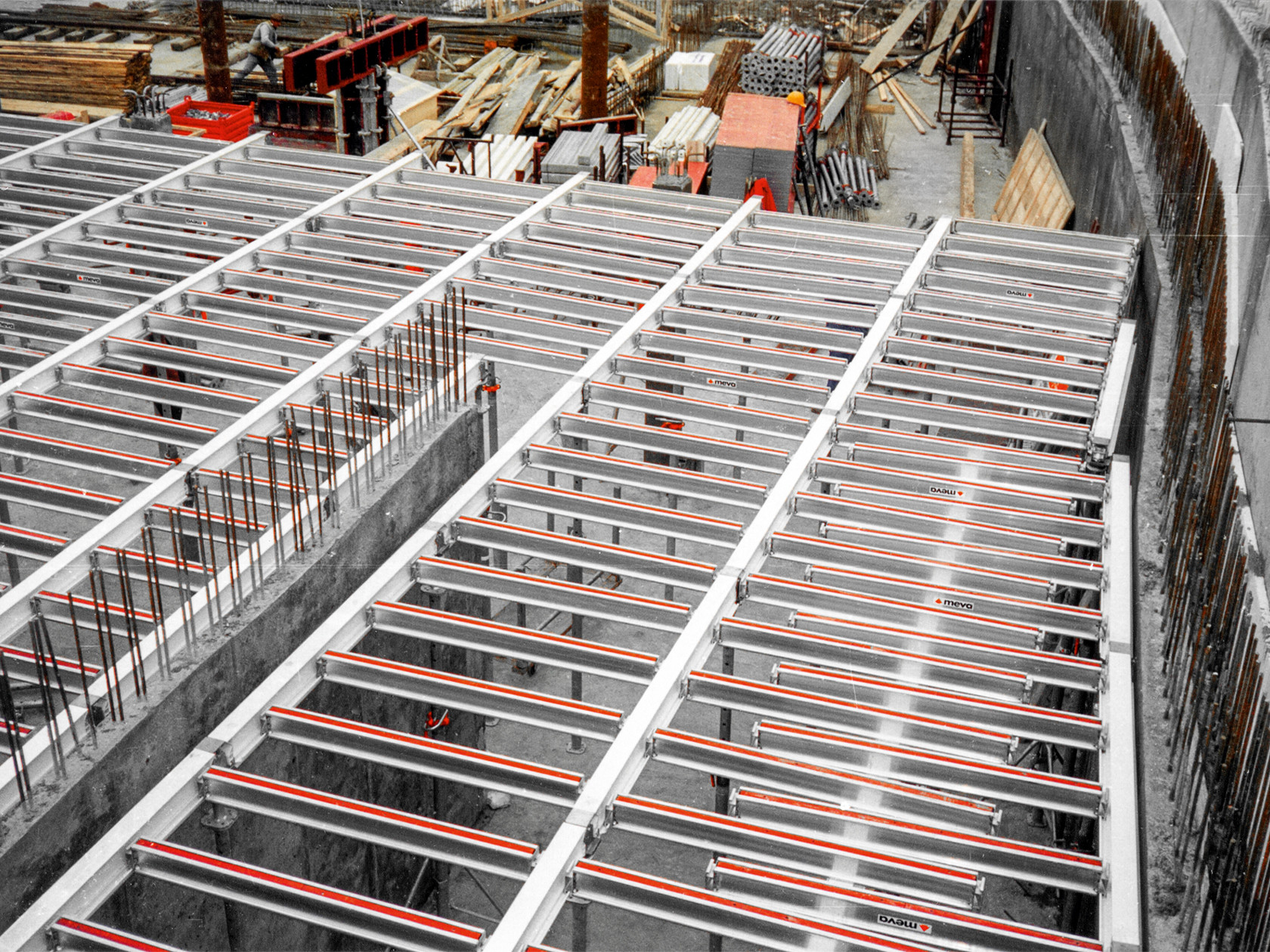

Primary-and-secondary-beam method (HN)
The HN method uses only four components: primary beams, secondary beams, props with drop heads, and facings, enabling early stripping

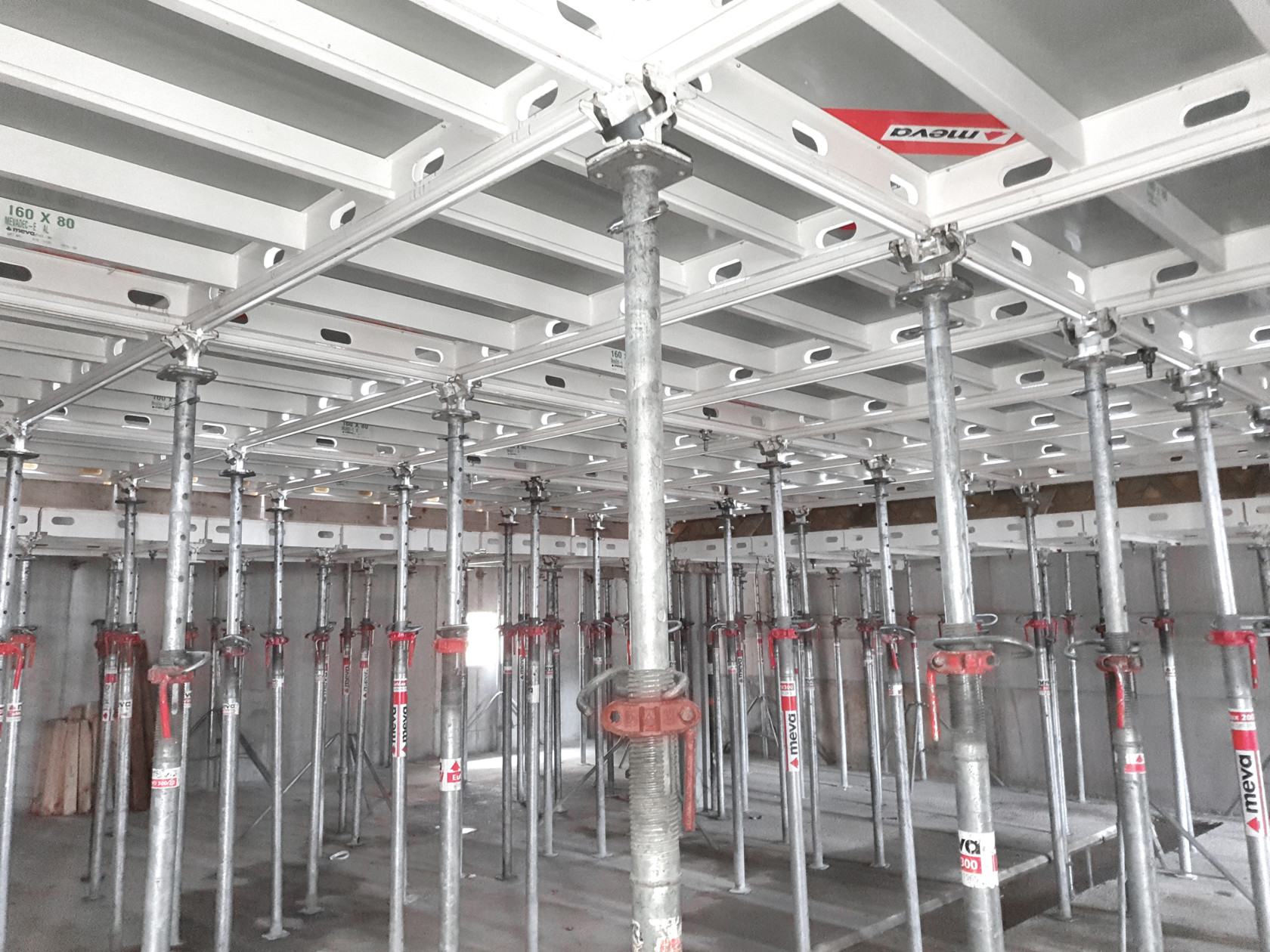

Panel method (E)
The panel method (E) uses only two components: panels and props with prop heads.

The ideal option for building layouts and filler areas with small surface areas.
