Wall Formwork
Mammut 350
Cost-effective all-in system, setting the standard
Think big with Mammut 350
Mammut 350, quite simply scales new heights. This heavy-duty formwork’s outstanding feature is its ability to accommodate fresh concrete pressures of up to 100kN/m² over the entire surface. Easy to set up, it offers outstandingly short pour times for heights of up to 4m.
Large panel formats ensure rapid progress of work on site. Storey heights of up to 350cm can be cast with a single panel, with no need for vertical extension. Multiple corner configurations for a range of floor plans also speed up construction.
It will also significantly enhance the overall architectural appeal of any project. Ideal for use with fair-faced concrete, alkus all-plastic facing combined with the symmetrical tie-and-joint pattern ensures a visually pleasing finish.
SecuritBasic is a safety system for Mammut 350 and easy to install using a single component – the flange screw. A load bearing capacity of up to 200kg/m² guarantees start-to-finish safety throughout the assembly and concreting operations.
With standardised system components, a minimum of accessories and a closely tailored product range, Mammut 350 combines all the features that make MEVA systems the unbeatable solution for practical on-site operations.
Got a specific enquiry about Mammut 350?
Why not call our team on +57 301 2276925

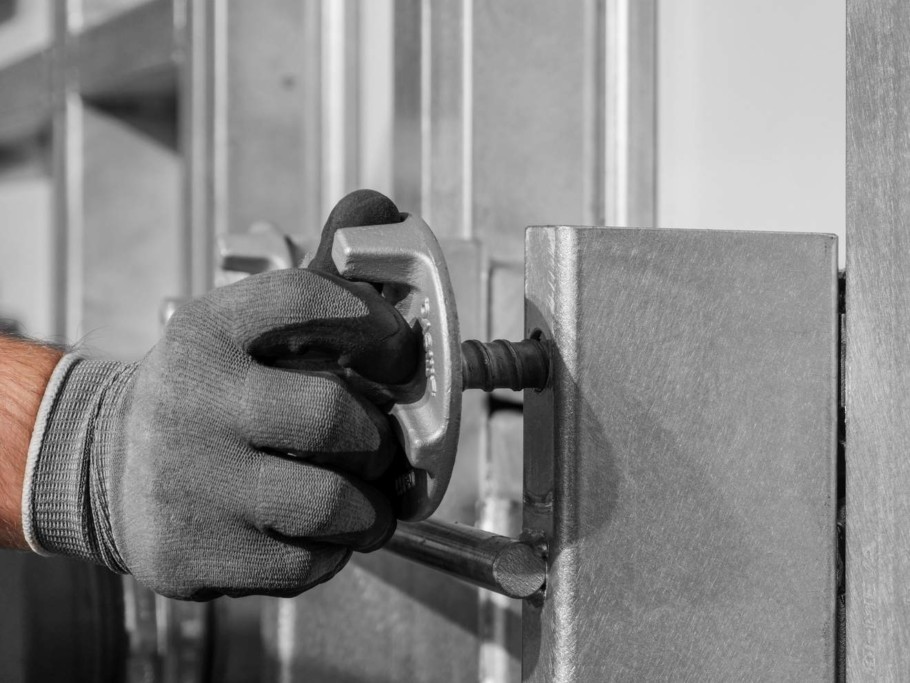

Flange screw
Single component for strong connection of all accessories, such as brackets, push-pull
props and alignment rails.

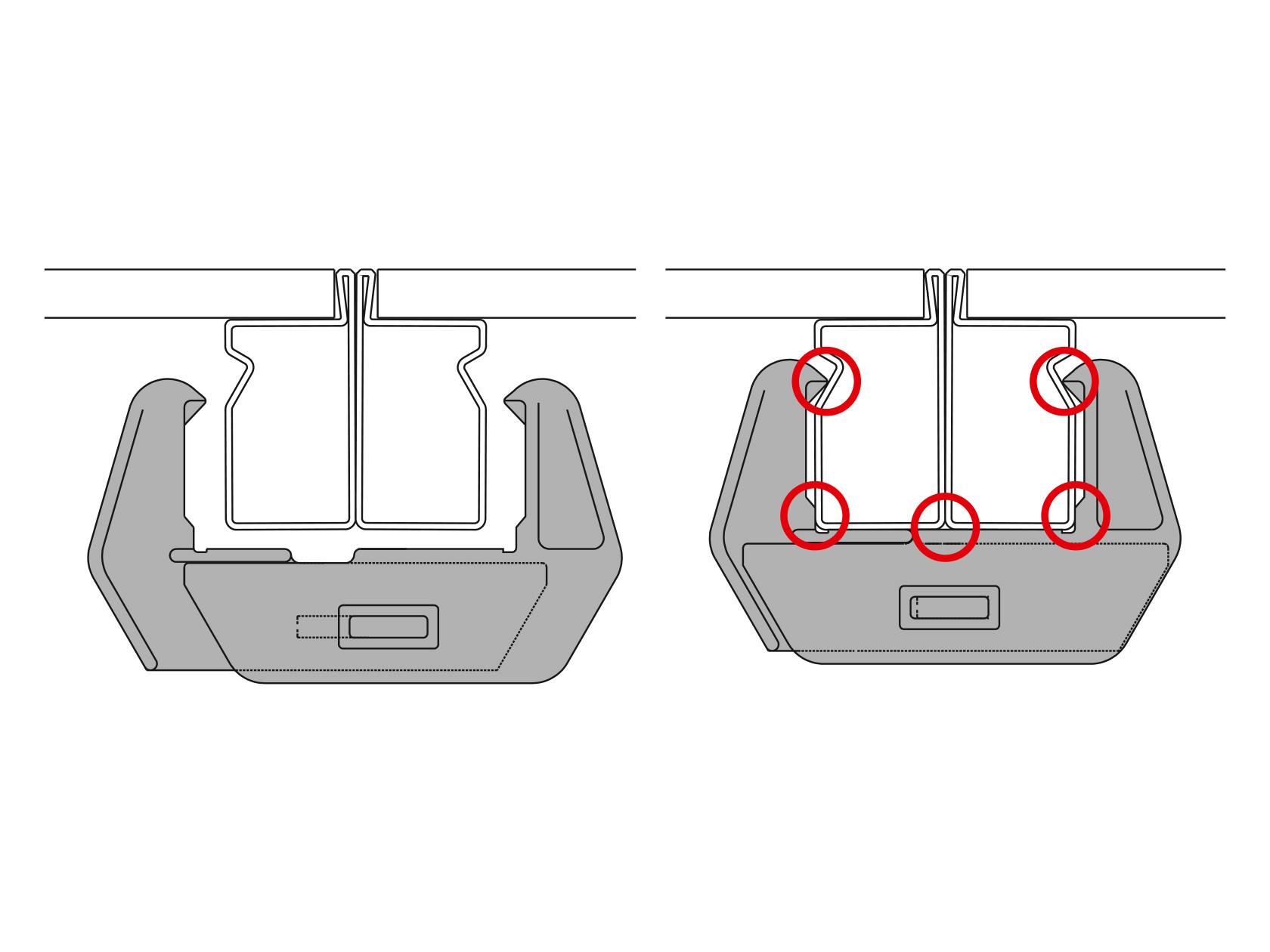

M-assembly lock
Only one component is needed for rapid, reliable panel connection: the MEVA assembly lock. Allows single-handed fitting at any position along frame. A few hammer blows suffice to achieve strong, level, stepless panel connection.
The rod fixture
For fixing to multi-purpose profile of upright or horizontal Mammut 350 panels – for fast and safe transportation on site.
Bump notches
Fitted at four corners for panel widths of 125 cm and more to simplify adjustment and alignment with crow bar.
alkus all-plastic facing
No water absorption. Resistant to swelling and shrinkage. The smooth, robust surface guarantees a high-quality concrete finish, even after heavy use.
Size
- Up to 8.75m² contact area per panel (350 x 250cm)
- For storey heights up to 350cm without vertical extension
Universal application in industrial construction and civil engineering
Closed hollow steel frame profile
- Structurally robust
- Torsion-proof
- Hot-dip galvanised to facilitate cleaning and reduce concrete adhesion
Smart multifunctional profile
- Welded-in Dywidag nuts
- All accessories, e.g. brackets, push-pull props and alignment rails, attached with MEVA flange screw
Tying for inclined or stepped-level formwork
- Tie hole with conical steel anchor sleeve, welded in from both sides
Intelligent MEVA product design
- MEVA assembly lock for a structurally continuous connection with only a few hammer blows
- Bump notches for panel widths of 125cm and more to simplify adjustment and alignment with crow bar
- High-quality alkus all-plastic facing with seven-year warranty
Compatible with Mammut XT
- Combines three tying methods in a single system
Time-saving, cost-effective system
The Mammut 350 wall formwork is a crane-dependent formwork system made of steel. It is ideally suited for use in projects that require a high-quality architectural concrete surface. Coherent element grading enables wide coverage of requirements, particularly for changing storey heights in:
- Public, commercial and industrial construction
- Civil engineering projects.
Compatible with SecuritBasic
A load bearing capacity of up to 200kg/m² guarantees start-to-finish safety throughout the assembly and concreting operations.

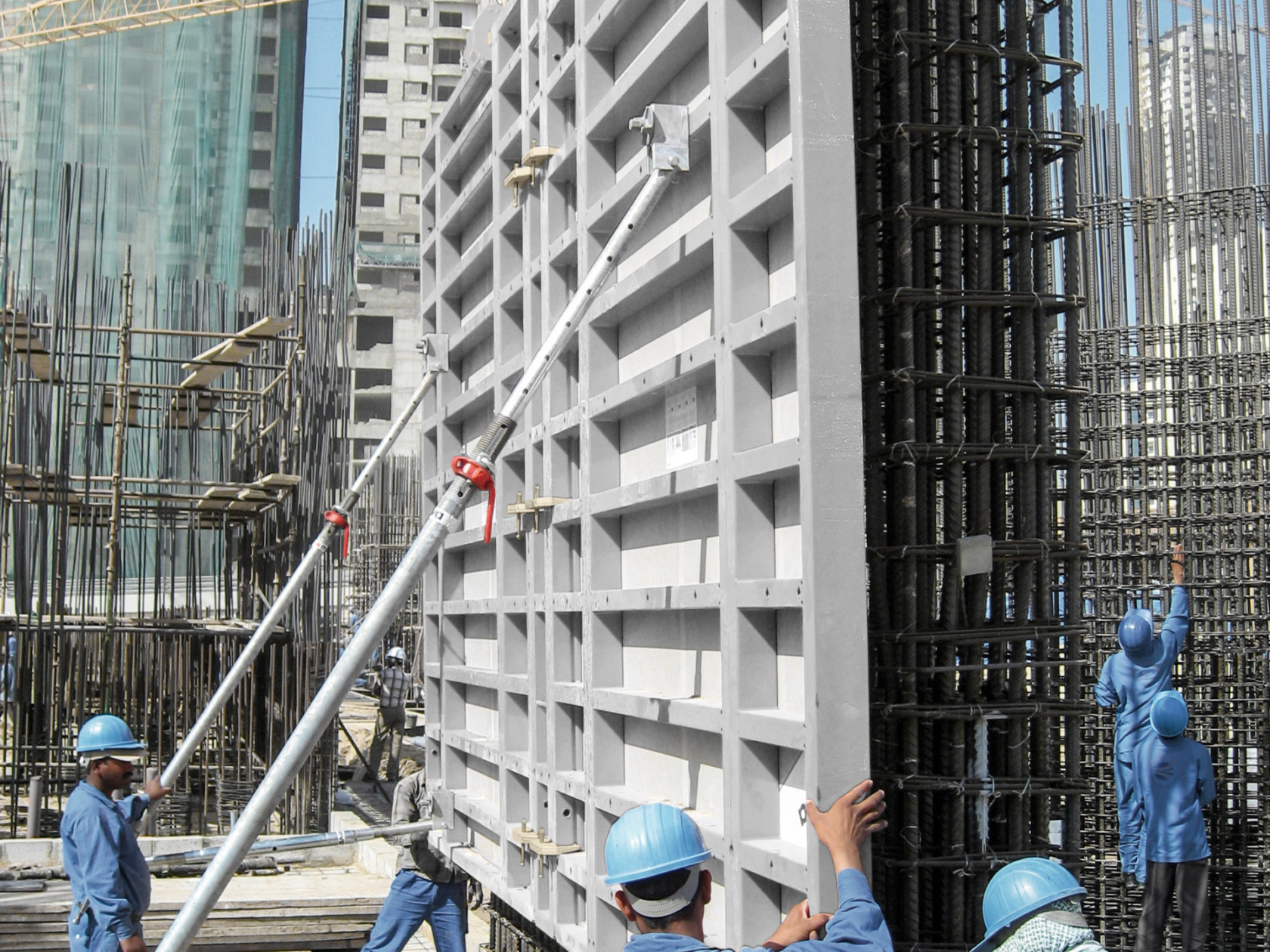

Easy set up
Mammut 350 is easy to set up. With unlimited pour speeds for heights of up to 4m and large formats, ensures rapid progress of work on site. Storey heights of up to 350cm can be cast with a single panel, with no need for vertical extension.

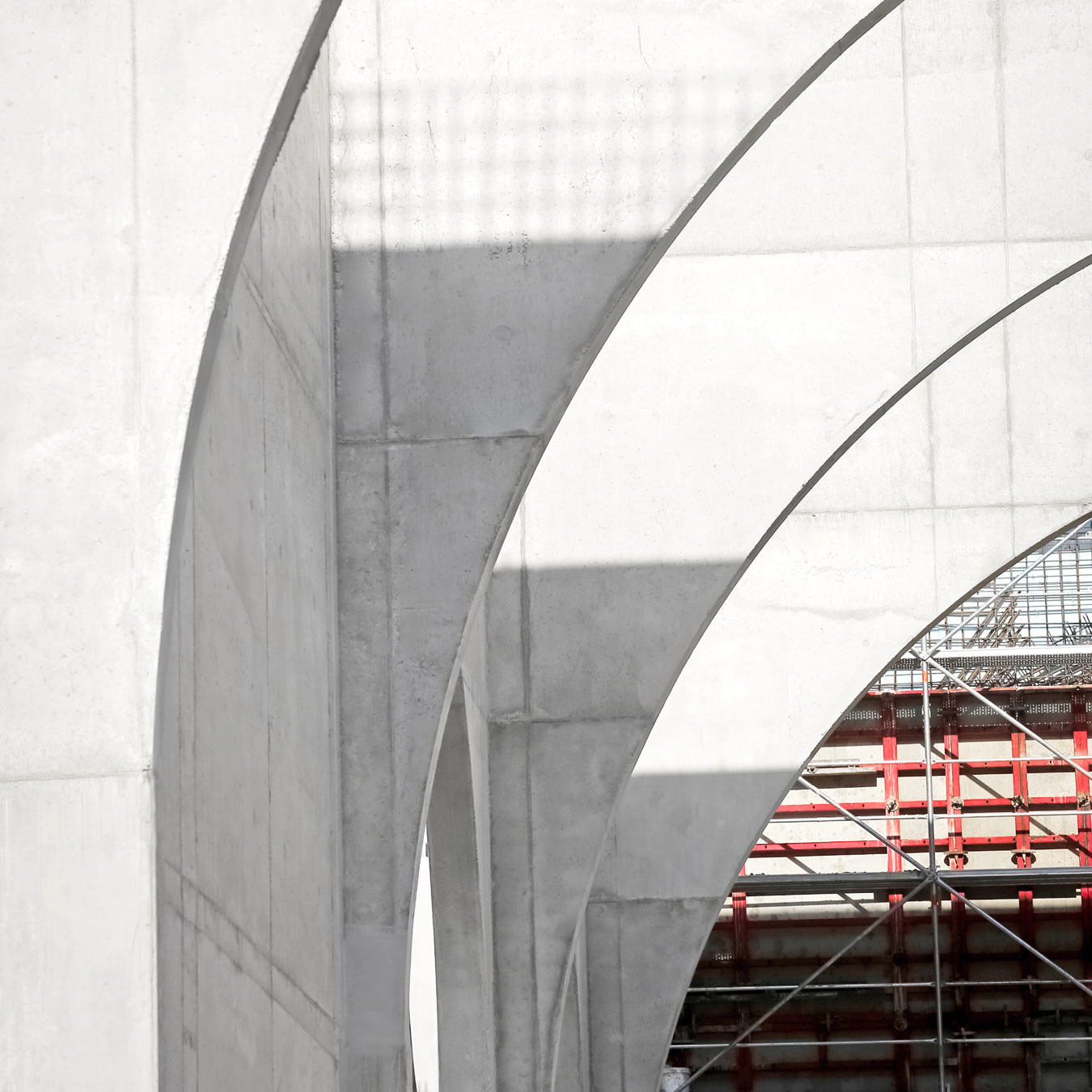

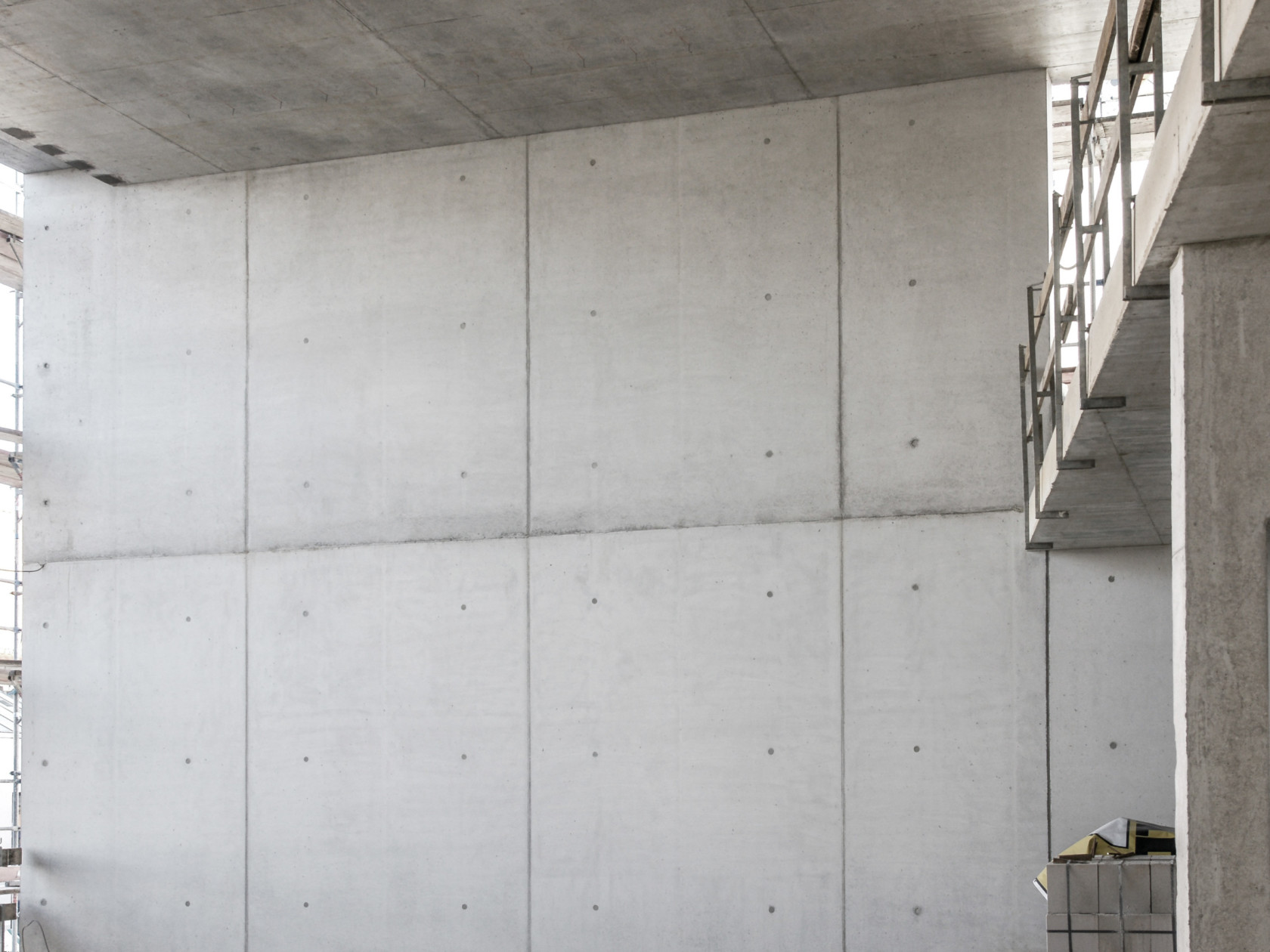

Excellent results for fair-faced concrete applications
The symmetrical alignment of tie holes and joints ensures an even joint and tie hole pattern on the concrete surface.
For more detailed technical information please refer to the download tab which contains PDF information about this product.
| Technical Information | |
|---|---|
| Performance | Permissible fresh concrete pressure (to DIN 18218) over entire surface of 100kN/m² (DIN 18202, Tab. 3, Line 7). |
| Materials | Steel. Structurally robust. |
| Heights | 350cm, 300cm, 250cm, 125cm. |
| Widths | 250cm, 125cm, 100cm, 75cm, 55cm, 60cm, 45cm, 30cm, 25cm. |
| Largest panel size | Up to 8.75m² contact area per panel (350 x 250cm). |
| Profile | 60cm, closed hollow steel profile. High stability and durability. |
| Protective coating | Hot-dip galvanised, surface post-treatment. Easy cleaning and reduced concrete adhesion. |
| Crane Independent | No. Requires crane assistance. |
| Tying System | DW Ø 20mm/120kN, double-sided tying. |
| Connections | Panels: M assembly lock. Stepless, friction-locked with just a few hammer blows. |
| Orientation | Symmetrical panels. Can be used horizontally and vertically. |
| Additional components | Column Panel, Inside Corner, Outside Corner, Hinged Inside Corner, Hinged Outside Corner, Stripping Corner, Fillers. |
| Corners | Available panel dimensions allow for trouble-free corner solutions with any wall thickness. |
| Facings | High-quality alkus all-plastic facing. 7-year warranty on all panels. |
| Compatibility | Mammut XT. |
| Safety | |
|---|---|
| SecuritBasic system | Includes platforms, access ladders, safety cages, front railings, brace frames and side railings in one system. |
Flange Screw
Single component for strong connection of all accessories.

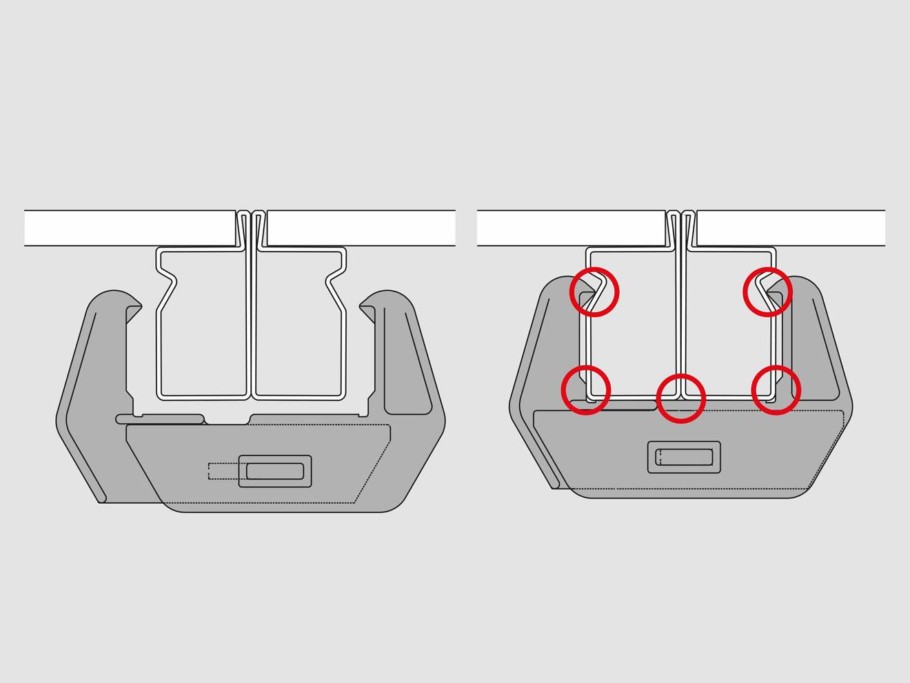

M assembly lock
Only one component needed for rapid, reliable panel connection: MEVA assembly lock. Allows single-handed fitting at any position along the frame. A few hammer blows suffice to achieve a strong, level and stepless panel connection.
Tie rod fixture
For fixing to multi-purpose profile of upright or horizontal Mammut 350 panels – for fast and safe transportation on site.
